Have a Low-Ceiling Garage? »

The Fully Collapsible Parking Lift

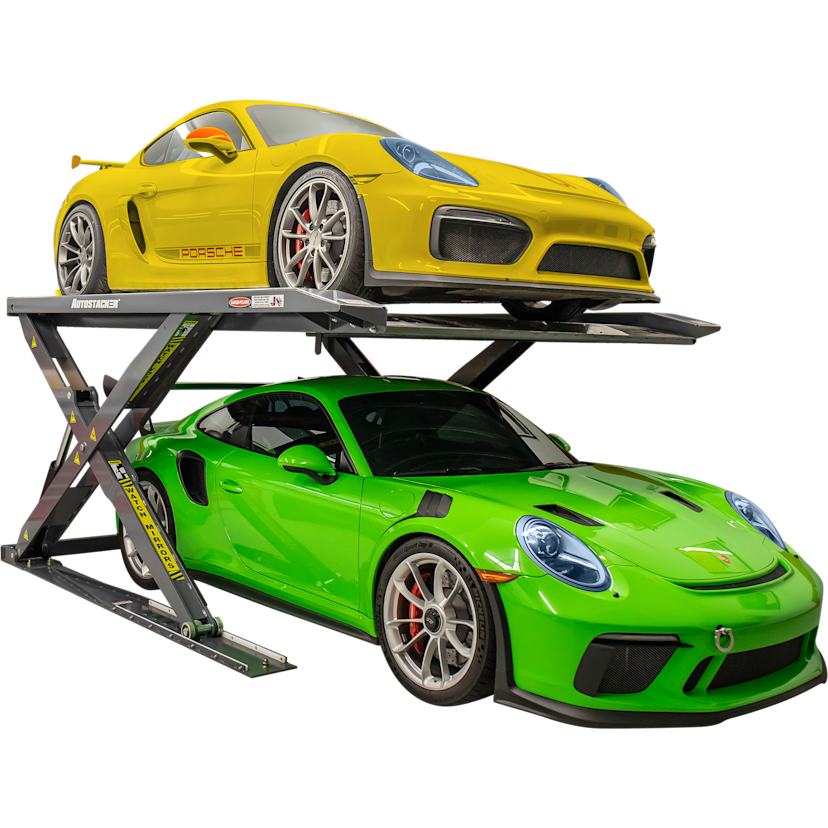

Meet the Autostacker

With the strength to support up to 6,000 pounds, Autostacker is the perfect parking lift system that doubles as a home car lift and professional stacker.

View Full Specifications
Autostacker is a Large Capacity Parking Lift for Car Storage

6,000-lb. Lifting Capacity

When you make Autostacker your home parking lift, you get enough storage capacity to lift most cars.

Low-Profile Parking Lift for Low-Clearance Cars

Low-Profile Entry Ramp

Our super-low-profile deck is gently inclined to permit safe, easy clearance for low-stance vehicles.

Galvanized Steel Platform Parking Lift

Interlocking Galvanized Platform

A hot-dipped, zinc-coated platform lasts many years and protects the bottom vehicle from fluid drips.

Automatic safety locks make Autostacker a safe parking lift

Automatic Safety Locks

All locks engage continuously as the parking lift rises past five heights for versatile positioning.

Low-Profile Loading Platform

Autostacker’s patented loading deck is engineered with a unique, patented incline, so even dropped vehicles and racecars will effortlessly and safely glide onboard. A gentle wheel trough protects virtually all vehicle types from slippage or mishandling.

Autostacker Benefits

Autostacker Locking Heights

Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker’s fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop.

  • 1st Locking Position: 52.5" (1,334 mm)

    Change Height

    First Locking Position
  • 2nd Locking Position: 59.75" (1,518 mm)

    Change Height

    Second Locking Position
  • 3rd Locking Position: 66" (1,676 mm)

    Change Height

    Third Locking Position
  • 4th Locking Position: 71.5" (1,816 mm)

    Change Height

    Fourth Locking Position
  • 5th Locking Position: 76.5" (1,943 mm)

    Change Height

    Fifth Locking Position
  • 6th Locking Position: 80.25" (2,038 mm)

    Change Height

    Sixth Locking Position

Higher Capacity, Wider Access

Parking lift effortlessly raises vehicles up to 6,000 lbs. The lower parking space is wide and tall enough to fit many light-duty trucks and SUVs . Unique vertical rise eliminates platform tilt, which means more overhead clearance and near-zero radial shift.

Compare Solutions

Lifting Capacity

  • 6,000 lbs. / 2,722 kg

Dimensions

  • Overall width: 103.2” / 2,620 mm
  • Overall length: 144” / 3,658 mm
  • Platform length: 124” / 3,150 mm
  • Platform width: 83.8” / 2,128 mm
  • Platform height (forward): 13” / 330 mm
  • Ramp height (entry): 2” / 51 mm
  • Lifting height on top lock: 88.7” / 2,255 mm
  • Under clearance on top lock: 85.6” / 2,150

Power

Standard - Power Unit Console

  • Single unit operation
  • Motor horsepower: 2HP
  • Power consumption: 1,500 Watts
  • Motor voltage: 208-240V, 50/60Hz / 1Ph
  • Starting amps: 25A
  • Normal running amps: 12-18A

    Optional - Multi-Unit Power Unit Console

  • Operates up to 10 lifts
  • Motor horsepower: 7.5 HP
  • Power consumption: 5,600 Watts
  • Motor voltage: 208-230V/460 VAC, 50/60Hz / 3Ph
  • Starting amps 208-230V: 25A
  • Normal running amps 208-230V: 12-18A
  • Starting amps 460V: 10A
  • Normal running amps 460V: 6-9A

Decibels

  • 52 db

Special voltages available upon request.

What's Included

  • Right side scissors superstructure
  • Left side scissors superstructure
  • Front wheel trough
  • Ramp assembly with logo plate
  • Lower front tie-bar
  • Galvanized decking sections
  • Front tire stops
  • Power unit control console
  • Complete assembly parts package including all fasteners, hoses, fittings & anchor bolts
  • Installation and operators manual

Speed of Rise

  • Standard power unit console: 55 seconds
  • Optional multi-unit power unit console: 40 seconds

Shipping Weight

  • 3,350 lbs. / 1,530 kg.
Autostacker Specifications
Buy Autostacker

Two Cars. One Platform. Zero Posts.
